Automatic faucet

Abstract

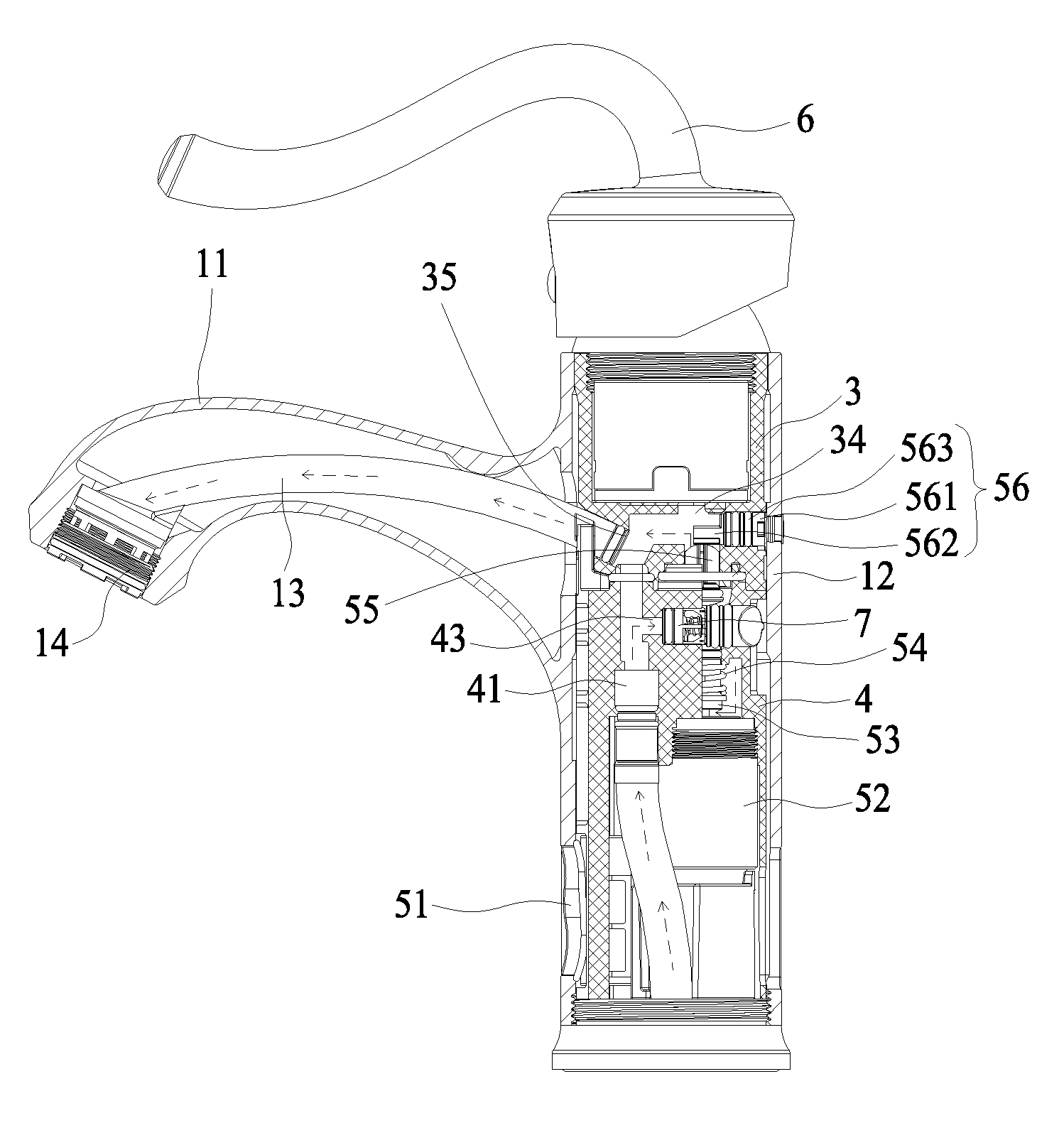

An automatic faucet includes a faucet body, an inner core assembly, and a sensor. The inner core assembly includes a valve core, a valve core seat, and a sleeve. The valve core is mounted on the valve core seat. The valve core seat has a cold water hole, a hot water hole, a mixed water hole, and a water outlet. The sleeve is mounted beneath the valve core seat, and has a cold water inlet and a hot water inlet. The sleeve further has a diversion passage communicating with the cold water inlet. The sensor is used to open or close the diversion passage. The sensor includes a sensing module, a solenoid valve, and a buffer rod.

Original Text (This is the original text for your reference.)

An automatic faucet includes a faucet body, an inner core assembly, and a sensor. The inner core assembly includes a valve core, a valve core seat, and a sleeve. The valve core is mounted on the valve core seat. The valve core seat has a cold water hole, a hot water hole, a mixed water hole, and a water outlet. The sleeve is mounted beneath the valve core seat, and has a cold water inlet and a hot water inlet. The sleeve further has a diversion passage communicating with the cold water inlet. The sensor is used to open or close the diversion passage. The sensor includes a sensing module, a solenoid valve, and a buffer rod.

Inventor: Yihui Chen,Wenbo Wu,Xiliang Yan

Application number: 15494534

Publication number: 10036150

Filing date: 2017-04-22

Publication date: 2018-07-30

Type of Patent: B2

Source: IKCEST

Images
