Exhaust gas heat recovery heat exchanger having a lobed tube coil

Abstract

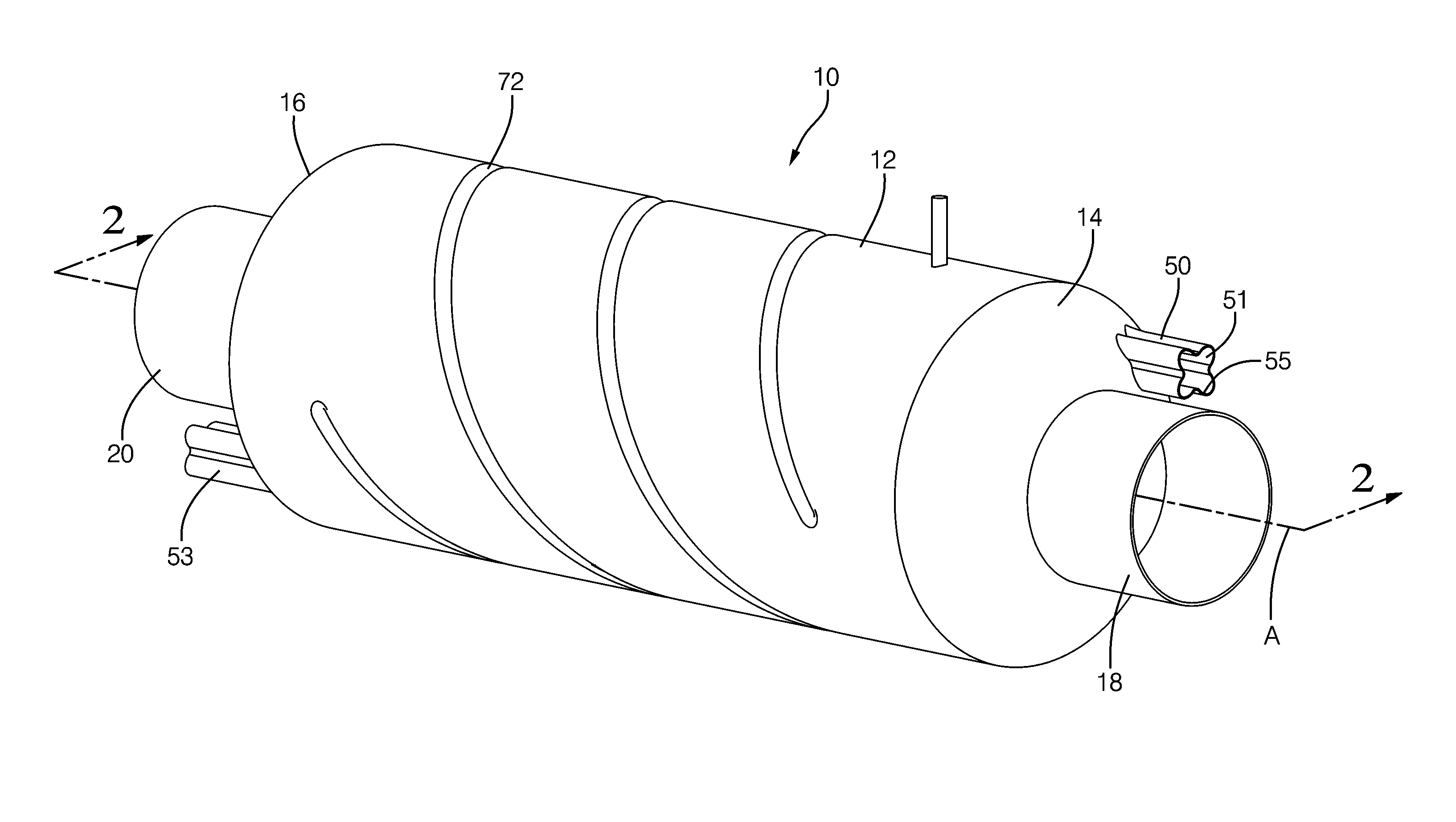

An exhaust gas heat recovery (EGHR) heat exchanger, for recovering waste heat from the hot exhaust gases of an internal combustion engine, having a housing and a cylindrical body disposed within the housing. The cylindrical body defines a central passageway and together with the housing defines an annular passageway for the flow of hot exhaust gases. A bypass means is disposed within the central passageway and adapted to selectively by-pass at least a portion of the exhaust gas from the central passageway to the annular passageway. The EGHR heat exchanger also includes at least one fluid tube extending along a tube axis and having at least one lobe extending the length of the tube thereby defining a lobed tube. The lobed tube is twisted about the tube axis forming a twisted lobed tube which is then coiled about the longitudinal axis within the annular exhaust gas passageway.

Original Text (This is the original text for your reference.)

An exhaust gas heat recovery (EGHR) heat exchanger, for recovering waste heat from the hot exhaust gases of an internal combustion engine, having a housing and a cylindrical body disposed within the housing. The cylindrical body defines a central passageway and together with the housing defines an annular passageway for the flow of hot exhaust gases. A bypass means is disposed within the central passageway and adapted to selectively by-pass at least a portion of the exhaust gas from the central passageway to the annular passageway. The EGHR heat exchanger also includes at least one fluid tube extending along a tube axis and having at least one lobe extending the length of the tube thereby defining a lobed tube. The lobed tube is twisted about the tube axis forming a twisted lobed tube which is then coiled about the longitudinal axis within the annular exhaust gas passageway.

Inventor: James J. Koo,James A. Acre,Mark James Zima,James Alan Bright

Application number: 13289641

Publication number: 08978745

Filing date: 2011-11-03

Publication date: 2015-03-16

Type of Patent: B2

Source: IKCEST
